Air outlet connection | Item | Specification | Material | Remarks |

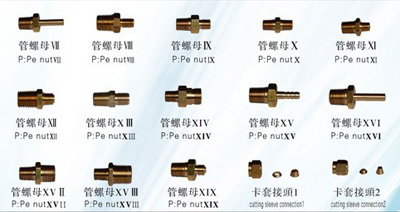

Pipe nut Ⅶ | NPT1/4-ø6.35-inner boreø5 | Brass 316L | With cutting sleeve | |
Pipe nut Ⅷ | NPT1/4-M8-inner bore ø3.3 | Brass 316L | With cutting sleeve | |
Pipe nut Ⅸ | NPT1/4-M11X1.25-inner bore ø6 | Brass 316L | ||
Pipe nut Ⅹ | NPT1/4- NPT1/4-inner bore ø6 | Brass 316L | ||
Pipe nut Ⅺ | NPT1/4-ZG1/8-inner bore ø3 | Brass 316L | ||
Pipe nut Ⅻ | NPT1/4-R1/8-inner bore ø3.1 | Brass 316L | ||
Pipe nut ⅩⅢ | NPT1/4- M12X1.5-inner bore ø6.1 | Brass 316L | ||
Pipe nut ⅪⅤ | NPT1/4-M20X1.5-inner bore ø6 | Brass 316L | ||
Pipe nut ⅩⅤ | NPT1/4- hose-inner boreø2.5 | Brass 316L | ||
Pipe nut ⅩⅥ | NPT1/4-ø6-inner bore ø3 | Brass 316L | ||
Pipe nut ⅩⅦ | NPT1/4-R3/8-inner bore ø3 | Brass 316L | With cutting sleeve | |
Pipe nut ⅩⅧ | NPT1/4-G1/2-inner bore ø3.1 | Brass 316L | ||
Pipe nut ⅪⅩ | NPT1/4-M10X1-inner bore ø3.4 | Brass 316L | With cutting sleeve | |
Cutting sleeve connection | Cutting sleeve connection 1 | Caliber 1/4" | Brass 316L | With cutting sleeve |
Cutting sleeve connection 2 | Caliber 1/8" | Brass 316L |
Category | Item | Specification | Material | Remarks |
Air inlet nuts | Big nut | G5/8-RH | Brass 316L | |
G5/8-LH | ||||
Small nut | W21.8-14RH | Brass 316L | ||
W21.8-14LH | ||||
Big nut 2nd | M20X1.5RH | Brass 316L | ||
Air inlet pipe | Inlet connection | NPTI/4 Length:85mm | Brass 316L | Filter attached |
Air outlet connection | Item | Specification | Material | Remarks |
Pipe nut | NPT1/4-M10X1 | Brass 316L | ||

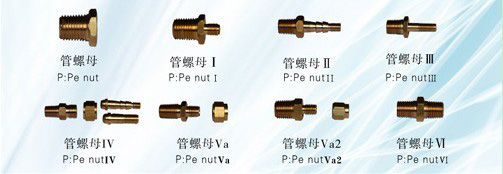

Pipe nutⅠ | NPT1/4-M8X1-inner bore ø3.4 | Brass 316L | With cutting sleeve | |
Pipe nutⅡ | NPT1/4-M8X1-inner bore ø3 | Brass 316L | With cutting sleeve | |
Pipe nut Ⅲ | NPT1/4-M8X1-inner bore ø3 | Brass 316L | ||
Pipe nut Ⅳa Ⅳb Ⅳc Ⅳd Ⅳe |
NPT1/4-ø10.5-18thread/in-55 thread angle-inner boreø6 | Brass 316L | With cutting sleeve | |
NPT1/4-M8X1-inner bore ø6.4 | Brass 316L | With cutting sleeve | ||
Pipe nut Ⅴa | NPT1/4-M11X1.25-inner bore ø6.4 | Brass 316L | With cutting sleeve | |
Pipe nut Ⅴa2 | NPT1/4-M8-inner bore ø3.1 | Brass 316L | With cutting sleeve | |
Pipe nut Ⅵ | NPT1/4-inner bore ø6.3 | Brass 316L |
